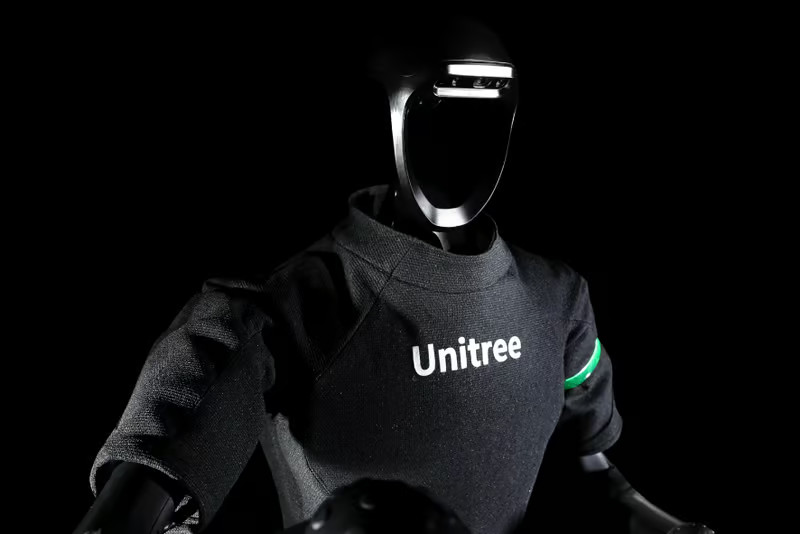

It was just recently that Unitree's developed their latest quadruped robot, the B2. Well, the Chinese company has also announced its first-ever humanoid bipedal robot, the Unitree H1.
With a planned price tag of under US$90,000, the H1 is intended to rival other humanoid bots such as those made by Tesla, Figure and Agility Robotics. As far as basic specs go, it stands 1,805 mm tall (71 in), weighs about 47 kg (104 lb) and can carry a payload of up to 30 kg (66 lb).
Joints in the hip, knee and ankle give each leg a total of five degrees of freedom, while joints in the shoulder and elbow give each arm a total of four degrees. Unitree's own M107 motors deliver 360 Nm (266 lb ft) of torque at each joint. Flexible fingers are reportedly in the works.
Also:
Unitree Robotics Humanoid Bot Breaks World Record for Speed
The race is on. Humanoid robots have been making waves lately, with new partnerships showcasing their applications within Amazon warehouses and BMW and Mercedes production lines. But that doesn’t mean there aren’t improvements to be made to this technology.
One such enhancement was recently unveiled by Unitree Robotics, a startup out of Shanghai, that’s claiming its H1 version 3.0 bi-pedal robot has broken a world record for speed.

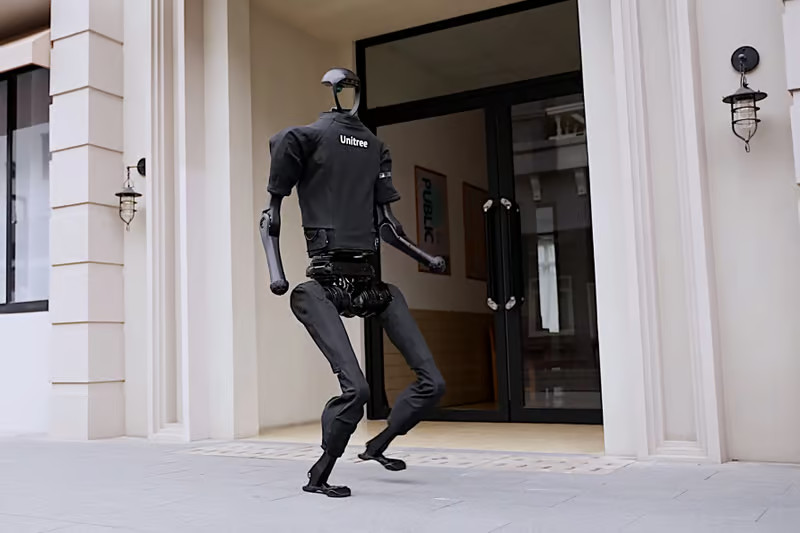

According to reports, the record has been held at 5.59 miles per hour by the Boston Dynamics Atlas model, but H1 has shattered that, allegedly speeding down the streets at a pace of 7.38 miles per hour. Popular Mechanics even cites Unitree claims that its bot can reach speeds of up to 11 mph.
Video footage has shown H1 managing other tasks, like lifting crates and even jumping and climbing stairs.
And while H1 aligns with the average human height, typical with humanoid bots, it’s actually lighter than many competitive products, weighing in at just 100 pounds. The hollow limbs and torso reportedly house electrical components, with the overall device featuring both a depth camera and LiDAR in order to provide a 360-degree view of H1’s surroundings.
As an added benefit in this emerging yet crowded market, Unitree hopes to lower the price point. According to Popsci, H1 could start as low as $90,000 — compared to Atlas’s $150,000 — making for a potentially attractive starting point, even if you don’t have a need for speed.
Also:
Unitree Robotics unveils G1 humanoid for $16k
Unitree Robotics unveiled its latest generation G1 humanoid robot at ICRA 2024. The original Unitree H1 humanoid was first introduced in 2023 and made famous in a number of videos demonstrating its balancing and walking capabilities.
The Unitree H1 was a popular demo during the CES 2024, where the Unitree booth was slammed throughout the show. In April, Unitree brought the H1 to NVIDIA GTC and walked the robot through the crowded aisles.
Unitree has become famous in the early days of the humanoid race as the first humanoid robot to take the robot off of its tether and walk it around in public, confident in the robot’s ability to balance and stand without falling on anyone.
Unitree has been active over the last year, producing a number of videos of the H1 humanoid, often in response to marketing videos from competitors like Boston Dynamics, Agility Robotics, Tesla, Figure and Apptronik. The videos from Unitree feature human wranglers pushing, kicking, and shoving the robot to show its agility and ability to balance. This is an homage to the early Boston Dynamics Atlas videos made famous for “robot bullying.”
Unitree also showed an electric-powered humanoid doing a flip on flat ground. This was yet another homage to the famous Boston Dynamics hydraulic-powered Atlas robot doing similar athletic and parkour stunts. Notably, since it launched the H1, Unitree has attempted to set itself apart from the humanoid pack from a robot walking, running, and balancing perspective.
Enter the Unitree G1 humanoid

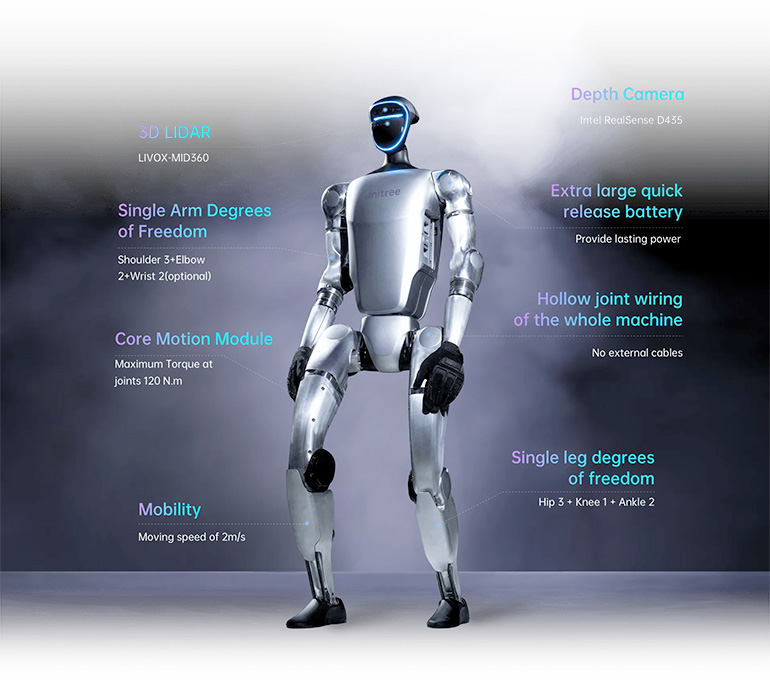

The first thing you notice about the new Unitree G1 humanoid is that it’s significantly smaller in size and stature than the H1 humanoid. The Unitree H1 is the size of an average adult (180 cm), while the Unitree G1 is the size of an average eight year old (127cm).
The smaller stature and design of the G1 requires less material and can use smaller motors than the H1, yet both units weigh about the same (47 kg). With a smaller robot, you’d expect to have a less expensive bill of materials. The G1 has a list price of $16,000 (base configuration) whereas the H1 has a base price of $90,000.
“Regarding the design and manufacturing of robots, every detail is critical in order to improve performance and reduce costs,” Unitree said when asked how it is reducing the cost of the G1 to such a low entry point. “For example, reduce the number of wires and cables, reduce the number of chips, reduce screws, etc. These may seem basic, but are actually very critical and important.
“Except for the chips, almost all the hardware of our robots is designed by ourselves. Through our past robot design and production experience, this has better performance and lower cost. Although it may seem contrary to common sense, for example, the motors and reducers are all models designed by us.”
As to whether the H1 would become obsolete with the launch of the G1, Unitree marketing director Duke Huang said, “Absolutely not. H1 is still our strongest humanoid robot and [we’ll] continue to maintain and support customers. There is a big difference between H1 and G1 in terms of size, price, and performance. G1 is more compact, more beautiful, relatively small, and easy to use and maintain. Of course, due to its smaller size, its power performance is still far behind H1.”
According to Unitree, the G1 humanoid can be optioned with articulating, force-controlled, three-fingered hands, which can further be optioned with tactile feedback. The robot battery has an operating time of “about 2 hours” and is designed to be quickly swapped out. For sensors, the robot features 3D LiDAR and Intel RealSense D435 cameras.
The robot also features a fast walking speed of 2,000 mm/s (4.5 MPH). This is fast for any of the competing humanoids or AMRs currently on the market.
Target market for Unitree G1 humanoid
With its diminutive stature, this design decision effectively eliminates Unitree G1 from a practical human labor replacement, as it won’t be able to reach the same work envelope as a human worker. So the question remains, what market is the Unitree G1 designed for?
With its entry-level price, nimble kinematic design, large joint operating range, and optional features, the G1 might be an excellent research platform for university labs. The G1 could offer a quicker start for a lab that wants a platform for developing new embodied AI algorithms. Unitree is a NVIDIA partner, and the G1 EDU version can be optioned with an NVIDIA ORIN controller which delivers the computing power for sophisticated model development. The fact that Unitree also launched the product at ICRA, implies that R and D is the initial target application for the G1.
Due to its small size, G1 won’t be able to reach a typical workbench, kitchen, or household environment. However, foundation models developed on G1 could likely be applied to the H1 version.
\
